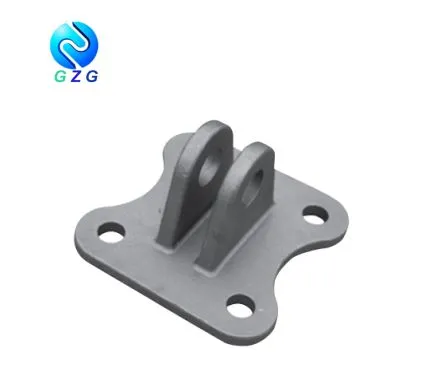

Fixació de cadena desmuntable fosa

Some clients need this attachment separately, so we put it on GZG website. As an  auxiliary tool, cast detachable chain attachment could work with leaf chain to help chain driving.

Dimensions of Cast Detachable hain Attachment

Cadena No.	Dimensions											Pes
	A	F	J	K	B	G	T	C	P	D	E
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	Kg/Pcs
5A	91.29	69.85	23.80	11.10	62.78	35.00	6.35	19.05	15.08	7.94	9.53	0.27
39A	76.20	53.98	23.80	11.00	62.78	35.00	6.35	19.05	15.08	7.94	9.53	0.24
Cadena No.	Dimensions											Pes
	A	F	J	K	B	G	T	C	P	D	E
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	Kg/Pcs
1C	127.00	88.90	33.34	28.58	50.80	25.40	7.94	39.69	23.02	12.70	15.88	0.73
2C	38.10	88.90	34.93	31.75	50.80	25.40	7.94	66.67	25.40	12.70	15.88	0.95
5C	28.80	69.85	33.34	28.58	50.80	20.64	7.94	34.93	21.43	12.70	15.88	0.59

If you need this sPer separat, si us plau, feu-nos saber el tipus, la vostra quantitat i el requisit de material, perquè puguem citar-vos aviat.
