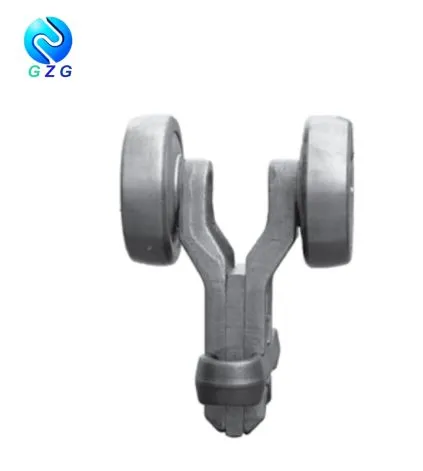

Carro-forjat i Carro inverstambé són un accessori de cadenes sense riu per a transportadors. Oferim carro i carro invers. Els principals tipus d'ells són X348, X458, X678, XT100, XT160, S348, 678. La part superior del carretó roda en una guia, la part inferior connecta la cadena transportadora que podria proporcionar energia cinètica. El carro forjat-GZG drop{7} està qualificat per mostrar qualitats com ara una càrrega elevada, un rendiment de lliscament suau i una mida estàndard.
Drawing and dimensions of Carretó-forjat
 | |||||||||||
| Cadena No. | Dimensions | Pes | |||||||||
| P | H | A | K | E | F | B | T | C | D | ||
| mm | mm | mm | mm | grau | mm | mm | mm | mm | mm | Kg/Conjunt | |
| X348-1 | 100.0 | 64.0 | 102.0 | 84.0 | 4 | 47.8 | 14.0 | 6.0 | 40.0 | 60.0 | 1.30 |
| X348-2 | 100.0 | 63.5 | 122.0 | 94.0 | 6 | 48.0 | 18.0 | 6.0 | 40.0 | 60.0 | 1.30 |
| X458-1 | 130.0 | 83.0 | 138.0 | 113.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.00 |
| X458-2 | 128.5 | 82.5 | 131.0 | 109.0 | 4 | 54.0 | 20.0 | 10.0 | 54.0 | 80.0 | 3.00 |
| X458-3 | 150.0 | 103.0 | 138.0 | 106.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.20 |
| X678 | 170.0 | 102.0 | 171.0 | 145.0 | 4 | 70.0 | 24.0 | 12.7 | 85.0 | 120.0 | 7.40 |
| XT100 | 130.0 | 83.0 | 138.0 | 113.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.00 |
| XT160 | 171.0 | 103.0 | 180.0 | 140.0 | 6 | 70.0 | 26.0 | 16.0 | 84.0 | 120 | 8.80 |
 | ||||||||||||
| Cadena No. | Dimensions | Pes | ||||||||||
| P | H | A | K | E | F | B | T | C | G | D | ||
| mm | mm | mm | mm | grau | mm | mm | mm | mm | mm | mm | Kg/Conjunt | |
| S348 | 100.0 | 65.8 | 143.0 | 104.0 | 3 | 47.8 | 22.0 | 6.0 | 40 | / | 60 | 1.5 |
 | ||||||||||||
| Cadena No. | Dimensions | Pes | ||||||||||
| P | H | A | K | E | F | B | T | C | G | D | ||
| mm | mm | mm | mm | grau | mm | mm | mm | mm | mm | mm | Kg/Conjunt | |
| 678 | 136.0 | 89.0 | 146.0 | 114.0 | 4 | 54.0 | 18.0 | 10.0 | 86.0 | 54 | 82.00 | 3.6 |
Drawing and dimensions of Carretó invers{0}}forjat
 | ||||||||
| Cadena No. | Dimensions | Pes | ||||||
| P | H | A | F | T | C | D | ||
| mm | mm | mm | mm | mm | mm | mm | Kg/Conjunt | |
| X348 | 86.0 | 48.0 | 93.0 | 55.0 | 6.0 | 40.0 | 60.0 | 1.3 |
| X458 | 95.0 | 44.0 | 120.0 | 54.0 | 10.0 | 54.5 | 82.0 | 2.5 |
Adjunt per Trolley
 | ||||||||||
| Cadena No. | Dimensions | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 38.1 | 135.5 | 47.8 | 80.0 | 25.4 | 8.5 | 13.5 | 6.0 | 14.0 | / |
| X458 | 54.0 | 148.2 | 54.0 | 52.5 | 33.5 | 10.5 | 13.5 | 10.0 | 17.0 | / |
| X678 | 76.2 | 177.8 | 70.0 | 92.0 | 41.5 | 13.5 | 20.5 | 12.7 | 20.8 | / |
| XT160 | 80.0 | 248.0 | 70.0 | 107.0 | 43.5 | 13.0 | 20.0 | 16.0 | 32.0 | / |
 | ||||||||||
| Cadena No. | Dimensions | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 38.1 | 68.0 | 47.8 | / | 25.4 | 8.3 | / | 6.0 | / | / |
| X458 | 54.0 | 85.0 | 54.0 | / | 33.5 | 11.5 | / | 10.0 | / | / |
| X678 | 80.0 | 110.0 | 70.0 | / | 41.5 | 13.5 | / | 12.7 | / | / |
| XT160 | 80.0 | 110.0 | 70.0 | / | 43.5 | 13.0 | / | 16.0 | / | / |
 | ||||||||||
| Cadena No. | Dimensions | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 38.1 | 146.1 | 47.8 | 39.7 | 25.4 | 8.3 | 3.6 | 6.4 | / | 1/2-13UNC |
| X458 | 50.8 | 177.8 | 54.0 | 47.6 | 33.5 | 10.3 | 5.0 | 9.5 | / | 5/8-11UNC |
| X678 | 76.2 | 222.0 | 70.0 | 66.7 | 41.5 | 13.5 | 5.6 | 12.7 | / | 7/8-9UNC |
| XT160 | 78.0 | 225.0 | 70.0 | 67.0 | 43.5 | 13.0 | 5.0 | 16.0 | / | M24X3 |
